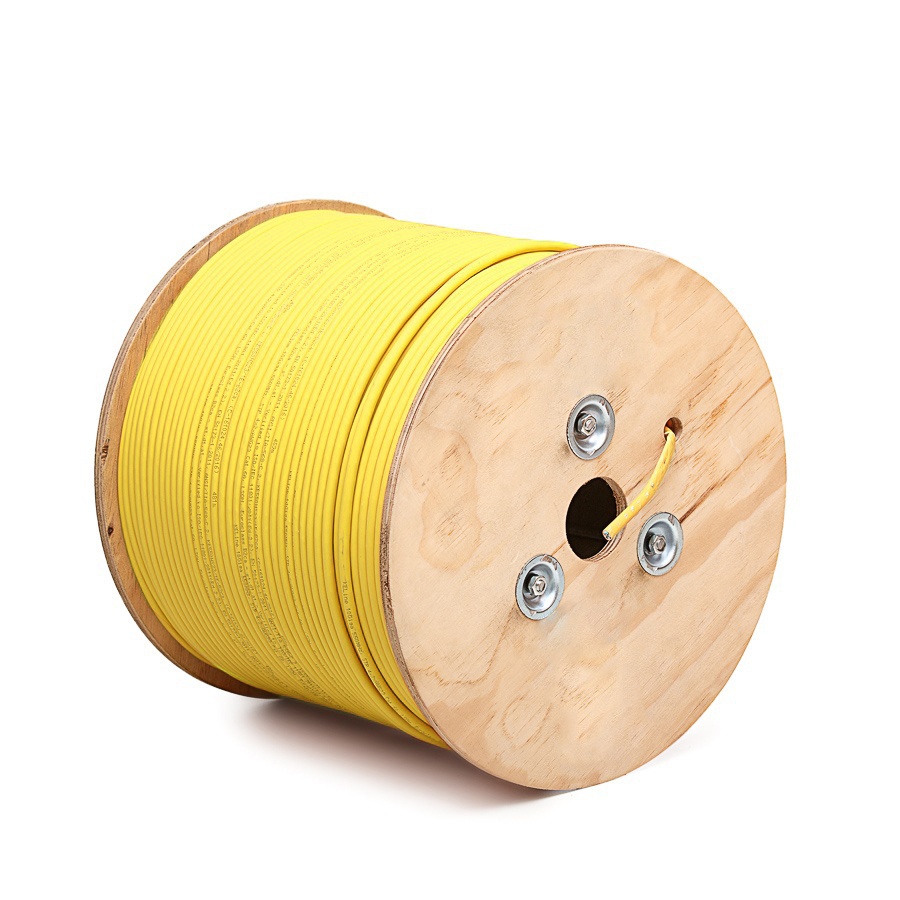

S/FTP cable 4x2xAWG22, Category 8, 2 GHz, LSOH, Euroclass Dca - s1, d1, a1

Performance categories: Category 8, Shielding: Shielded, Sheath: LSOH, Reaction to fire: Dca - s1, d1, a1
P/N: KE2000HS22 (will be specified)
km
  • enables transmission of all high-speed protocols including 25GBASE-T and 40GBASE-T up to 30 m
  • tested in bandwidth up to  2 GHz
  • each pair individually shielded with AL/PET foil, overall copper braid, halogen-free sheath
  • suitable for places with higher level of electromagnetic interference

Technical specification

Min. bending radius - installation 68 mm
Min. bending radius - operation 34 mm
Max. tensile load 340 N (34 kg)
Temperature range - installation 0 °C to +50 °C
Temperature range - operation -20 °C to +60 °C
Outer cable diameter 8,5 mm
Copper conductor diameter AWG 22
NVP 73%
Reaction to fire Dca - s1, d1, a1
Fire safety flame retardant, low smoke, zero halogen, non-corrosive

Certificates and Warranties



This product is certified by GHMT international independent laboratories according to ISO/IEC 11801-1:2017 (Ed. 1.0) for 2 connector channel 30 m.




The determination of Reaction to Fire Class Performance of this cable has been performed by Product Certification Body notified by European Commision, which also carries out the assessment and verification of constant performance (AVCP) in the System 3.





25-Year System Warranty
