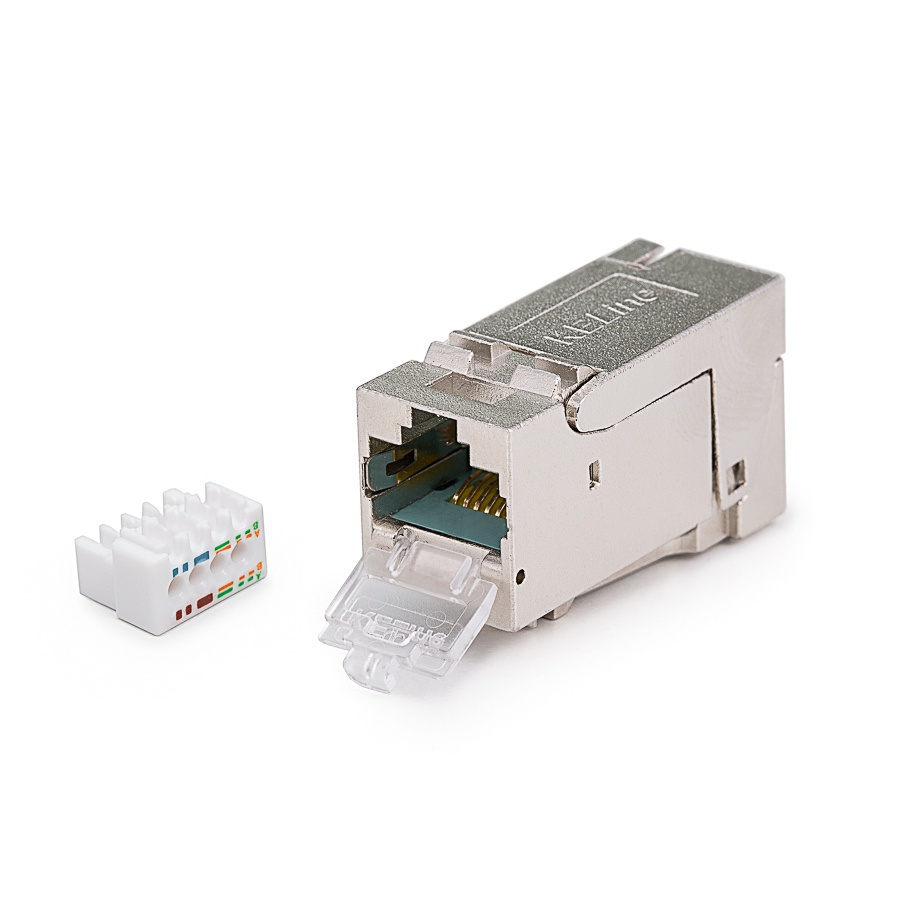

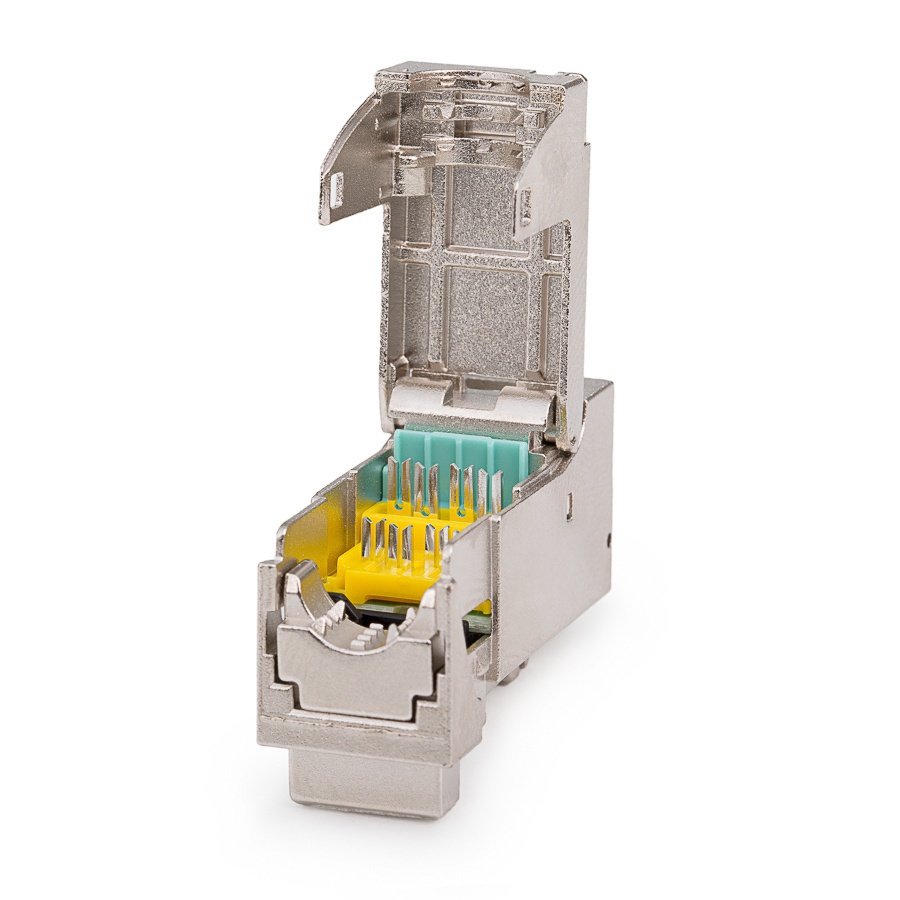

Keystone Jack HD, Category 6, RJ45/s

Shielding: Shielded, Performance category: Category 6
P/N: KEJ-C6-S-HD
pc
  • enables to install 24 modules into 0,5U and achieve a high density of up to 48 ports on 1U
  • low profile design reduces the required installation depth of 5 mm
  • tool-free, fast and easy installation
  • enables transmission of all high-speed protocols up to 1000BASE-T
  • guarantees a bandwidth of 250 MHz
  • perfectly shielded against electromagnetic interference
  • dust-proof shutter
  • nickel plated housing
  • suitable for a wide range of outlets, duct and channel systems
  • applicable on cables with solid wires (guarantees of anti-corrosive a gas-tight joint)

Technical specification

Suitable for installing on cables with solid wires from 0,51 to 0,65 mm (AWG 24 to AWG 22)
Required installation depth for sockets with angled faceplates 10 - 35 mm
Required installation depth for sockets with straight faceplates 35 mm
Contact pin material phosphor-bronze alloy coated with 50 μ of gold
Insertion / extraction cycles min. 750

Examples of keystone jack compatibility with outlets of other manufacturers
