P/N: KE-SFT45-C6AS

the shortest toolless field termination connector RJ45/s on market (39 mm)
suitable for all installation cables Cat. 7_A, Cat. 7, Cat. 6_A, Cat. 6, Cat. 5E
tool-free, fast and easy installation
due to the minimum required installation depth, it is particularly suitable for CCTV camera systems and WiFi
connection of IP cameras and wireless devices without the need of using outlets and patch cords

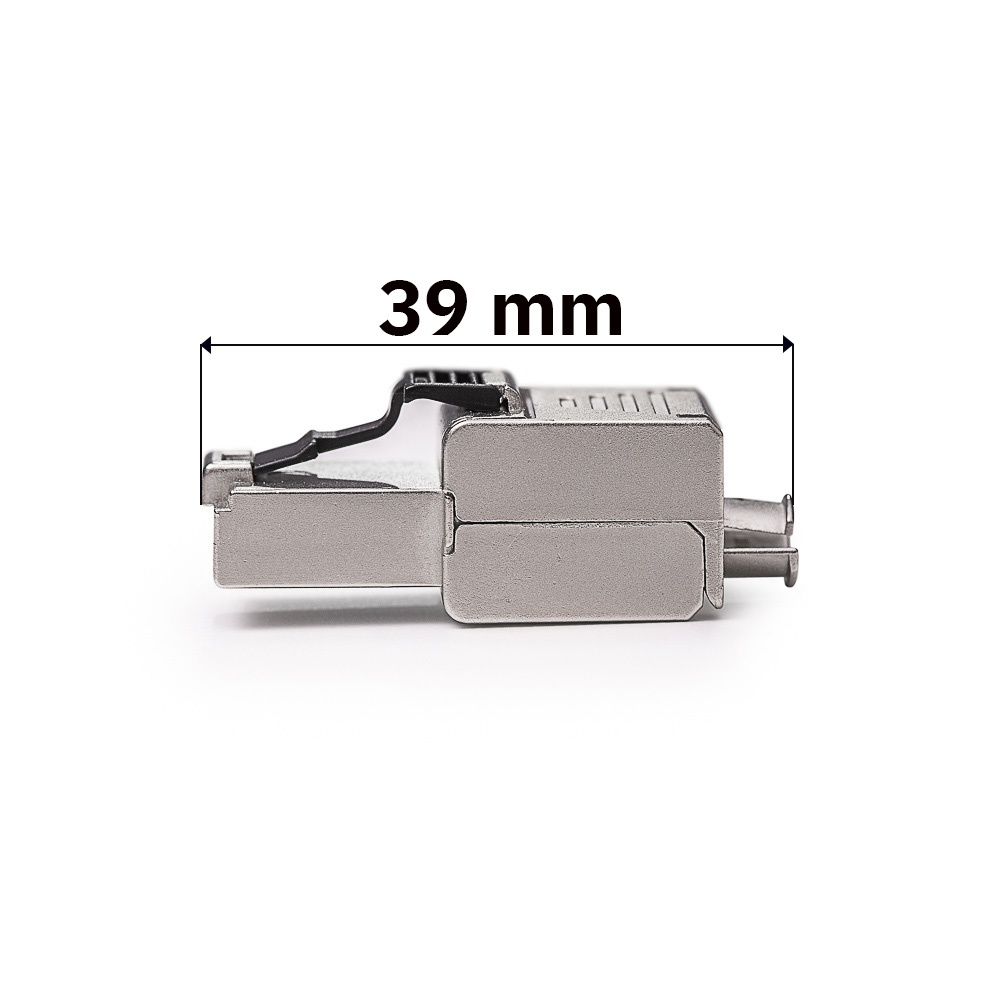

connector length 39 mm
enables transmission of all high-speed protocols including 10GBASE-T within the Cat. 6A system
guarantees a bandwidth of 500 MHz within the Cat. 6A system
perfectly shielded against Alien Crosstalk and electromagnetic interference

DATASHEET

Suitable for installing on cables with solid wires	from AWG 24 to AWG 22
Suitable for installing on cables with outer diameter	from 5 to 7,6 mm
Connector length	39 mm
