Home Keline®​ structured cabling system Copper cabling Cat. 6 shielded components Installation cables FTP (F/UTP) cable 4x2x0,53 mm, Category 6, 250MHz, LSOH, Euroclass Eca
FTP (F/UTP) cable 4x2x0,53 mm, Category 6, 250MHz, LSOH, Euroclass Eca

FTP (F/UTP) cable 4x2x0,53 mm, Category 6, 250MHz, LSOH, Euroclass Eca

P/N: KE400S23LSOH-Eca
km
  • optimized cable design for 2.5 and 5 Gigabit speeds, suitable for
    WiFi 5

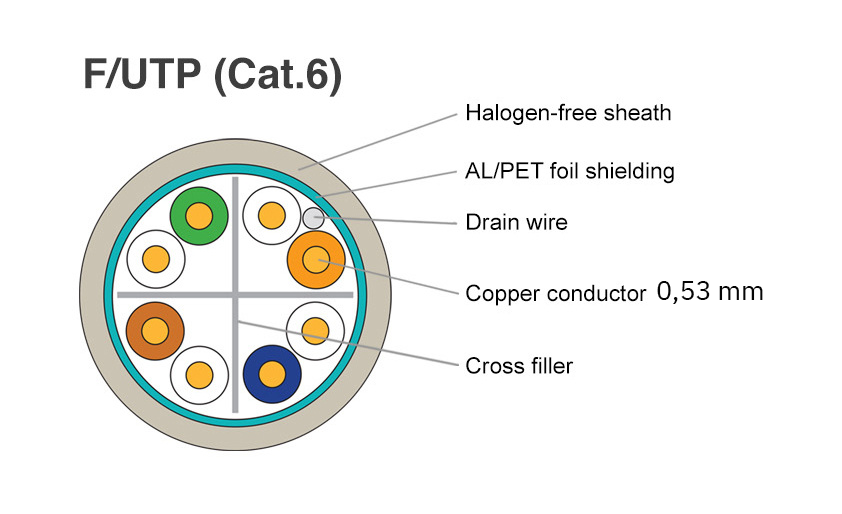

  • cable shielded with AL/PET foil, halogen-free sheath
  • enables transmission of all high-speed protocols up to 5GBASE-T
  • defined up to 250MHz

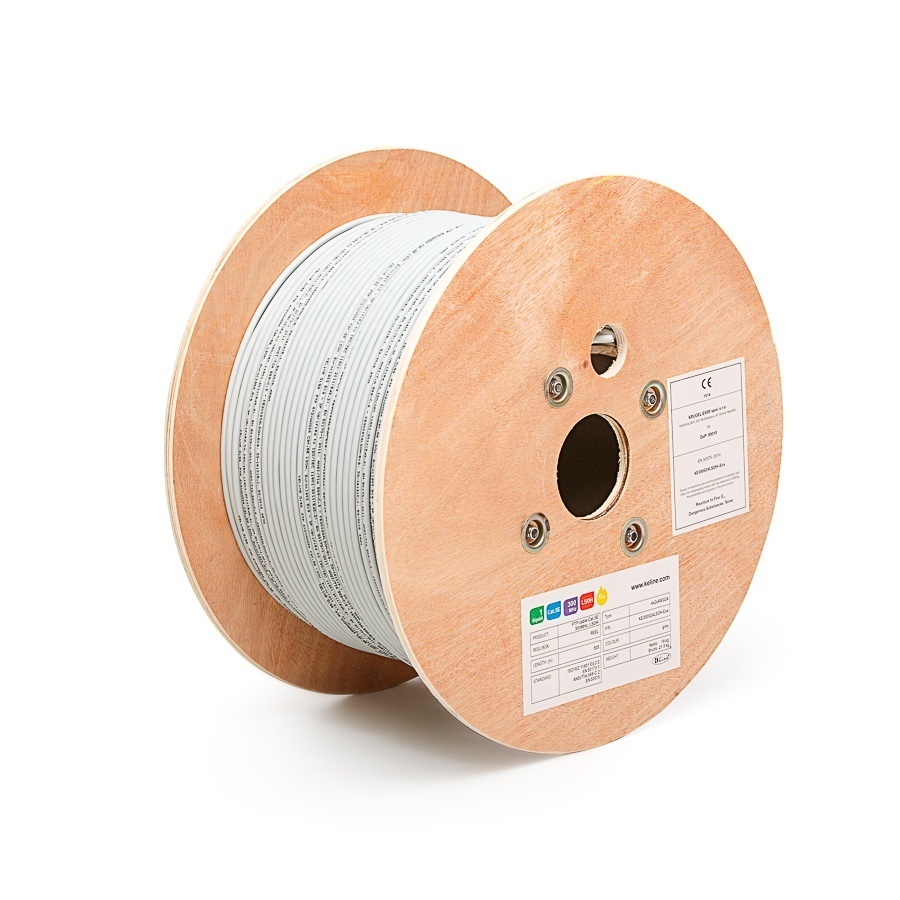

  • packing 500m on reel

DATASHEET DECLARATION OF PERFORMANCE

Technical specification

Min. bending radius - installation 56mm
Min. bending radius - operation 28mm
Max. tensile load 100N (10kg)
Temperature range -15°C to +75°C
Outer cable diameter 7,0mm
Copper conductor diameter 0,53mm
NVP cca 69%
Reaction to fire Eca
Fire safety flame retardant, low smoke, zero halogen, non-corrosive

Certificates and Warranties




The determination of Reaction to Fire Class Performance of this cable has been performed by Product Certification Body notified by European Commision, which also carries out the assessment and verification of constant performance (AVCP) in the System 3.





25-Year System Warranty
