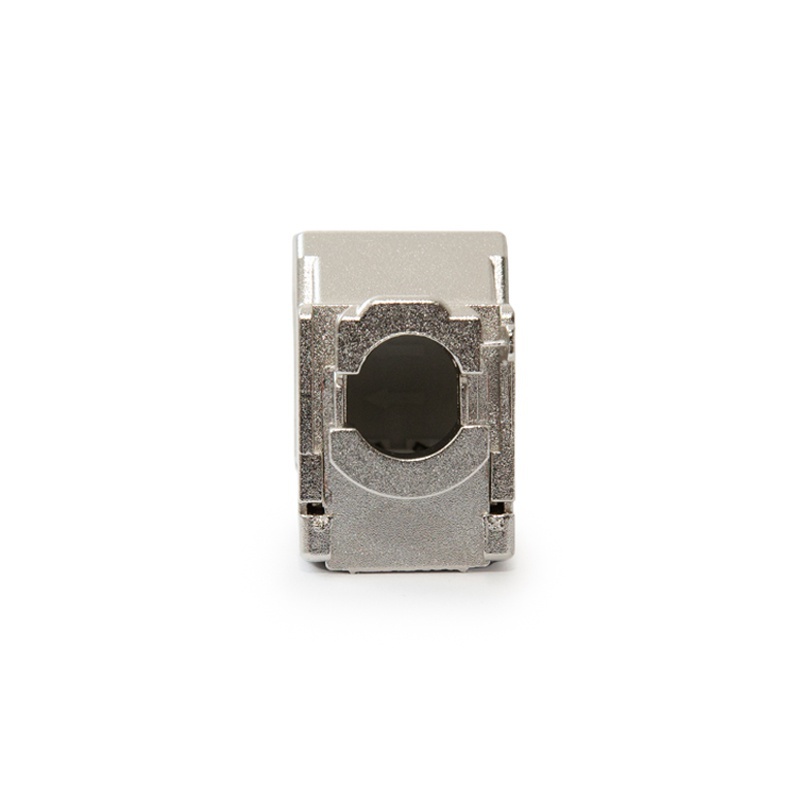

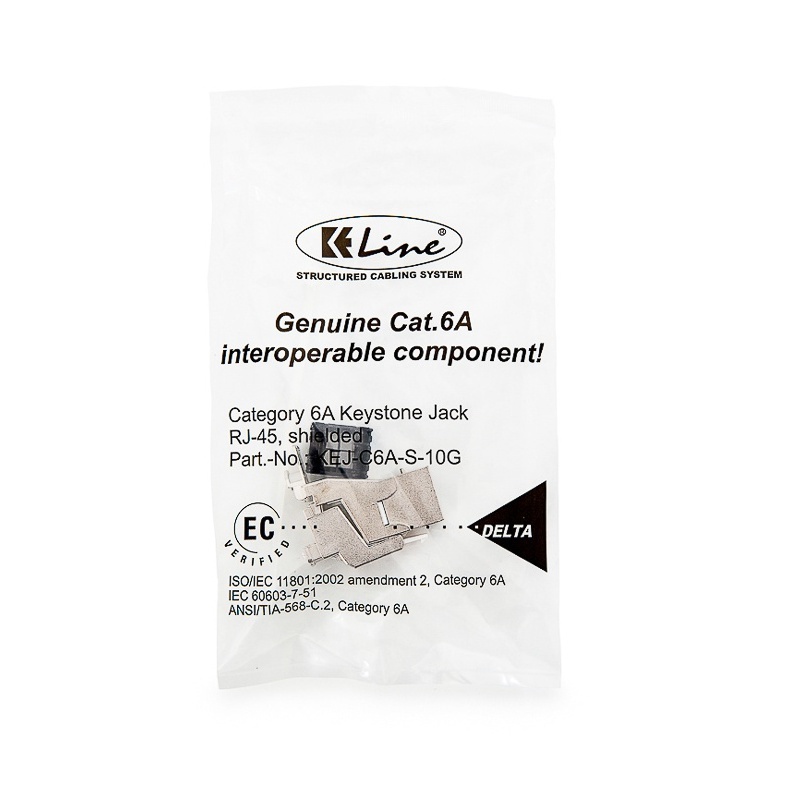

Keystone Jack, Category 6A, RJ45/s

Shielding: Shielded, Performance category: Category 6A
P/N: KEJ-C6A-S-10G
pc
  • tool-free, fast and easy installation
  • PoE Type 4 (100W) certified in FORCE Technology laboratories
  • enables transmission of all high-speed protocols including 10GBASE-T
  • guarantees a bandwidth of 500 MHz
  • perfectly shielded against Alien Crosstalk and electromagnetic interference
  • suitable for a wide range of outlets, duct and channel systems
  • applicable on cables with solid as well as stranded wires (guarantees anti-corrosive gas-tight joint)

Technical specification

Suitable for installing on cables with solid wires from 0,51 to 0,64 mm (AWG 24 to AWG 22)
Suitable for installing on cables with stranded wires from AWG 26/7 to AWG 24/7
Required installation depth for sockets with angled faceplates 15 - 40 mm
Required installation depth for sockets with straight faceplates 40 mm
Contact pin material phosphor-bronze alloy coated with 50 μ of gold
Insertion / extraction cycles min. 750

Certificates and Warranties



This product is certified on a component level by FORCE Technology international independent laboratories according to ISO/IEC 11801-1:2017 (Ed. 1.0) / ISO/IEC 11801-2:2017 (Ed. 1.0), IEC 60603-7-51:2010, EN 50173-1:2018 / EN 50173-2:2018, TIA-568.2-D:2018, IEC 60512-99-002:2022.



Mass production of this product is under permanent supervision of third party international laboratories performing FORCE Technology EC VERIFIED quality audit of the manufacturer's production and quality assurance sites.




25-Year System Warranty


Examples of keystone jack compatibility with outlets of other manufacturers





Video tutorial
