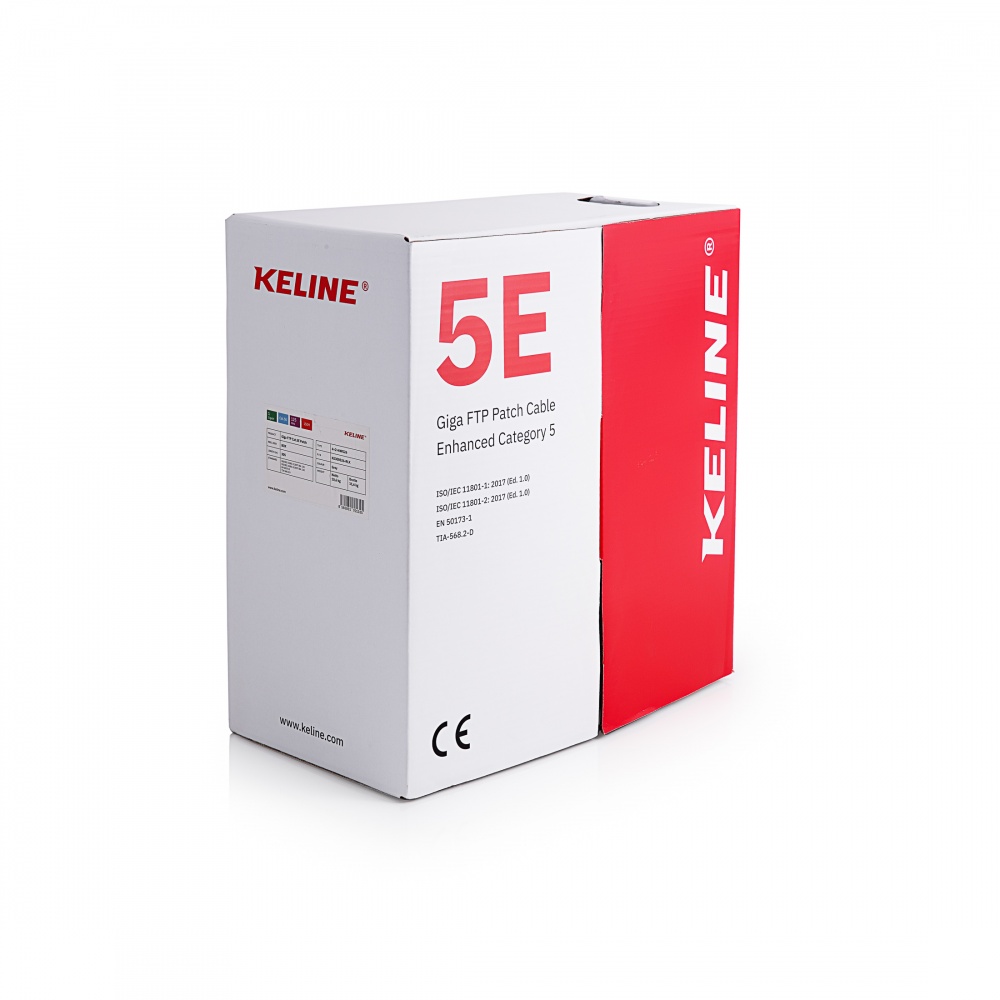

Name: Cable for flexible links FTP (F/UTP), Category 5E, 125 MHz, 305 m in a box
Availability: InStock

P/N: KE300S26-RLX

cable shielded with AL/PET foil, LSOH sheath
enables transmission of all high-speed protocols up to 1000BASE-T
guarantees a bandwidth of 125 MHz
enables RJ45 connectors to be mounted directly to the cable
complies with the requirements for fire prevention arrangements in buildings with higher concentration of people

DATASHEET

Min. bending radius - installation	44 mm
Min. bending radius - operation	22 mm
Max. tensile load	55 N (5,5 kg)
Temperature range - installation	0°C to +50°C
Temperature range - operation	-20°C to +60°C
Outer cable diameter	5,5 mm
Copper conductor diameter	0,48 mm (AWG 26)
NVP	ca. 67 %

MP-SR-1-xx

58G6912U

Cable for flexible links FTP (F/UTP), Category 5E, 125 MHz, 305 m in a box

Technical specification
