UTP (U/UTP) cable, 4x2xAWG23, Category 6, 400 MHz, Euroclass Eca

P/N: KE400U23-Eca

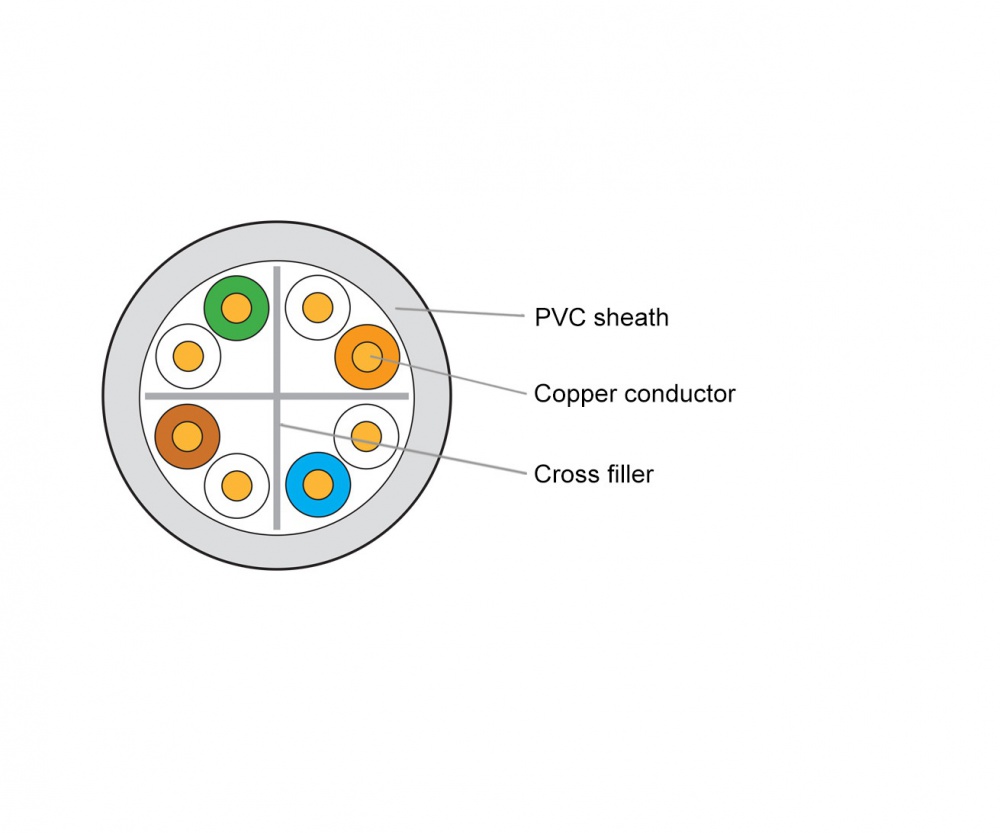

unshielded cable with pairs separated by a cross filler, PVC sheath
enables transmission of all high-speed protocols including 1000BASE-T
tested in a bandwidth up to 400 MHz
not shielded against electromagnetic interference

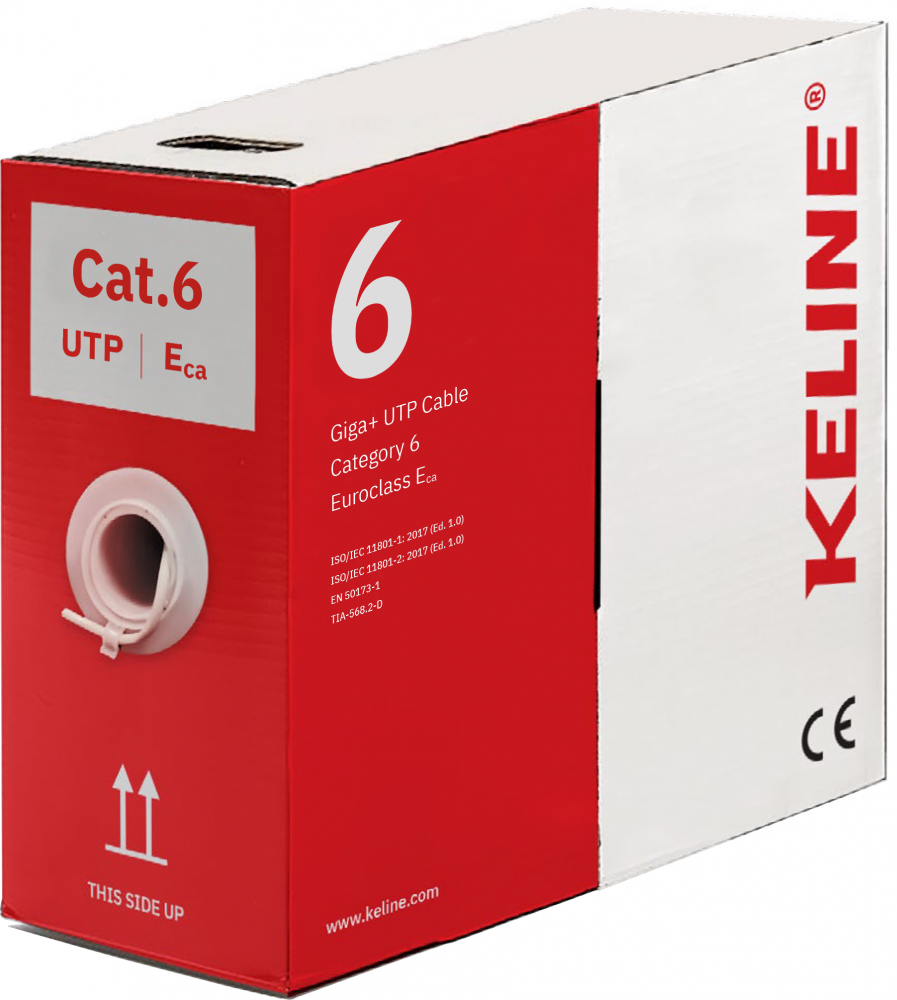

305 m in a box

DATASHEET DECLARATION OF PERFORMANCE EKSPLOATACINIŲ SAVYBIŲ DEKLARACIJA DECLARACIÓN DE PRESTACIONES Декларация за Експлоатационни Показатели

Min. bending radius - installation	48 mm
Min. bending radius - operation	24 mm
Max. tensile load	100 N (10 kg)
Temperature range - installation	0°C to +50°C
Temperature range - operation	-20°C to +60°C
Outer cable diameter	6 mm
Copper conductor diameter	AWG23
NVP	cca 69%
Reaction to fire	E_ca
Fire safety	flame retardant

The determination of Reaction to Fire Class Performance of this cable has been performed by Product Certification Body notified by European Commision, which also carries out the assessment and verification of constant performance (AVCP) in the System 3.
