Home Keline^® structured cabling system Copper cabling Cat. 6 unshielded components Installation cables UTP (U/UTP) cable, 4x2xAWG23, Category 6, 400 MHz, LSOH, Euroclass D_ca - s2, d2, a1, 305 m in a box

UTP (U/UTP) cable, 4x2xAWG23, Category 6, 400 MHz, LSOH, Euroclass Dca - s2, d2, a1, 305 m in a box

P/N: KE400U23LSOH-Dca-RLX

unshielded cable with pairs separated by a cross filler, halogen-free sheath
enables transmission of all high-speed protocols including 1000BASE-T
tested in a bandwidth up to 400MHz
not shielded against electromagnetic interference

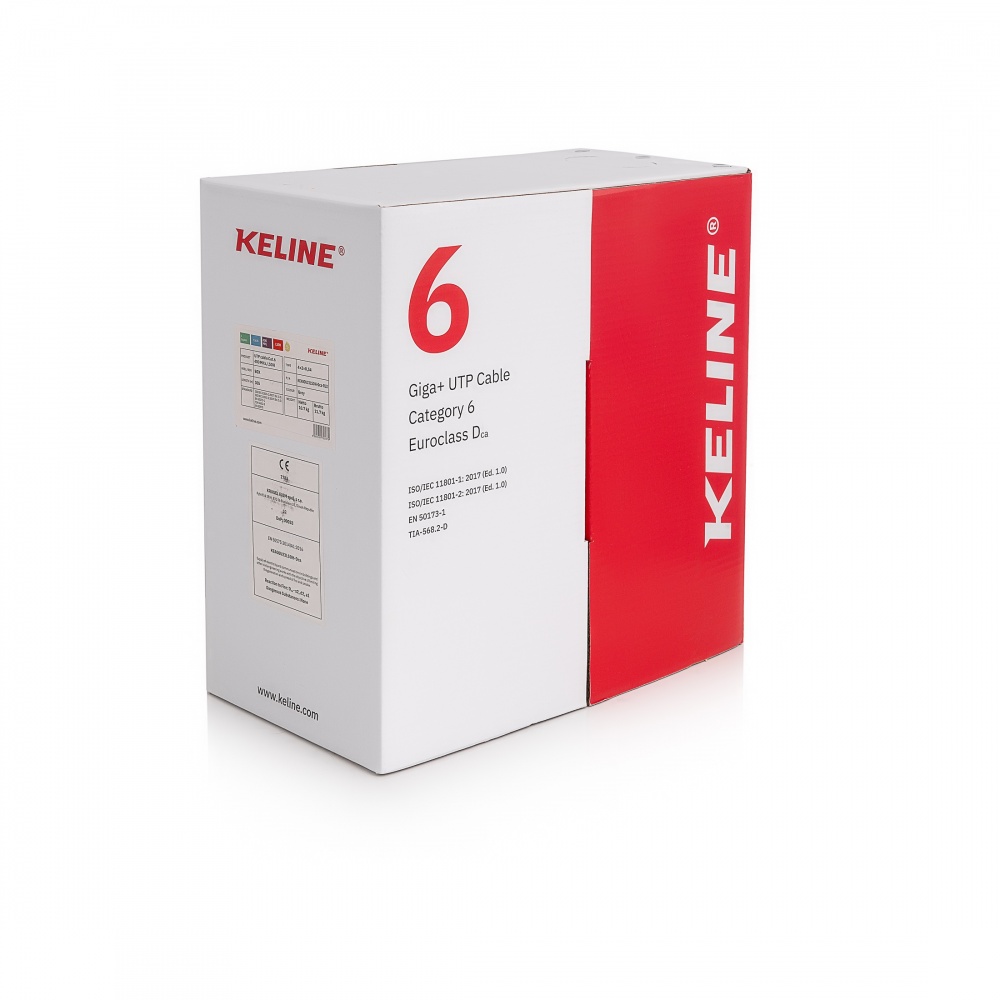

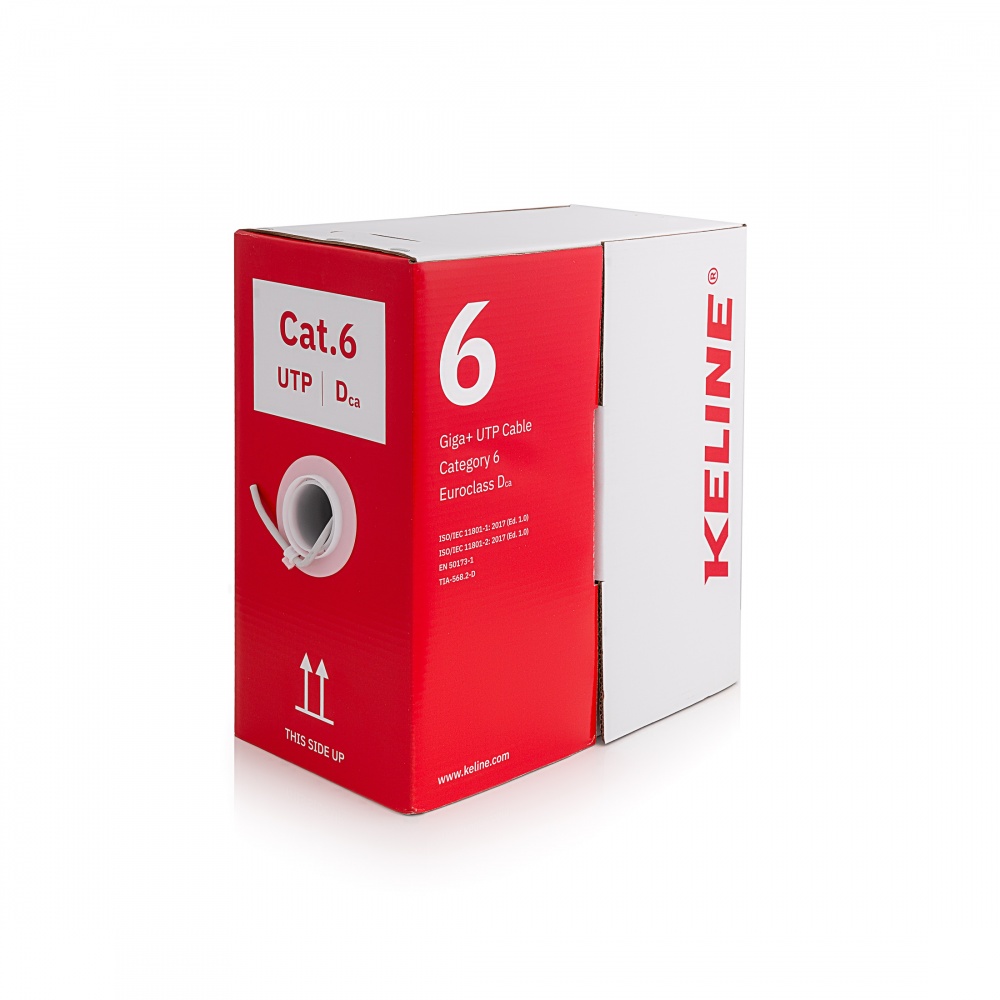

305m in box

DATASHEET CERTIFICATE CERTIFICATE - PERMANENT LINK DECLARATION OF PERFORMANCE Декларация за Експлоатационни Показатели DECLARACIÓN DE PRESTACIONES EKSPLOATACINIŲ SAVYBIŲ DEKLARACIJA

Min. bending radius - installation	48 mm
Min. bending radius - operation	24 mm
Max. tensile load	100N (10kg)
Temperature range - installation	0°C to +50°C
Temperature range - operation	-20°C to +60°C
Outer cable diameter	6 mm
Copper conductor diameter	AWG23
NVP	cca 69%
Reaction to fire	D_ca - s2, d2, a1
Fire safety	flame retardant, low smoke, zero halogen, non-corrosive

The determination of Reaction to Fire Class Performance of this cable has been performed by Product Certification Body notified by European Commision, which also carries out the assessment and verification of constant performance (AVCP) in the System 3.
