UTP (U/UTP) cable, 4x2x0,53, Category 6, 400 MHz, LSOH, Euroclass B2ca - s1a, d1, a1, 500 m on reels

P/N: KE400U23LSOH-B2ca

the highest class of reaction to fire rating relevant to data cables, that meets the most stringent regulations and fire safety directives within EU

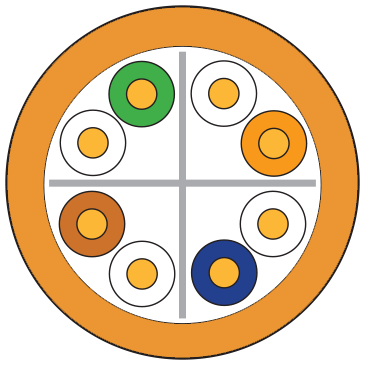

unshielded cable with pairs separated by a cross filler, halogen-free sheath
enables transmission of all high-speed protocols including 1000BASE-T
tested in a bandwidth up to 400MHz
not shielded against electromagnetic interference
500 m on reels

DATASHEET CERTIFICATE CERTIFICATE - PERMANENT LINK DECLARATION OF PERFORMANCE DECLARACIÓN DE PRESTACIONES Декларация за Експлоатационни Показатели EKSPLOATACINIŲ SAVYBIŲ DEKLARACIJA

Min. bending radius - installation	50 mm
Min. bending radius - operation	25 mm
Max. tensile load	100N (10kg)
Temperature range - installation	0°C to +50°C
Temperature range - operation	-20°C to +60°C
Outer cable diameter	6,2 mm
Copper conductor diameter	0,53 mm
NVP	cca 69%
Reaction to fire	B2_ca - s1a, d1, a1
Fire safety	flame retardant, low smoke, zero halogen, non-corrosive

The determination of Reaction to Fire Class Performance of this cable has been performed by Product Certification Body notified by European Commision, which also carries out the assessment and verification of constant performance (AVCP) in the System 1+.
