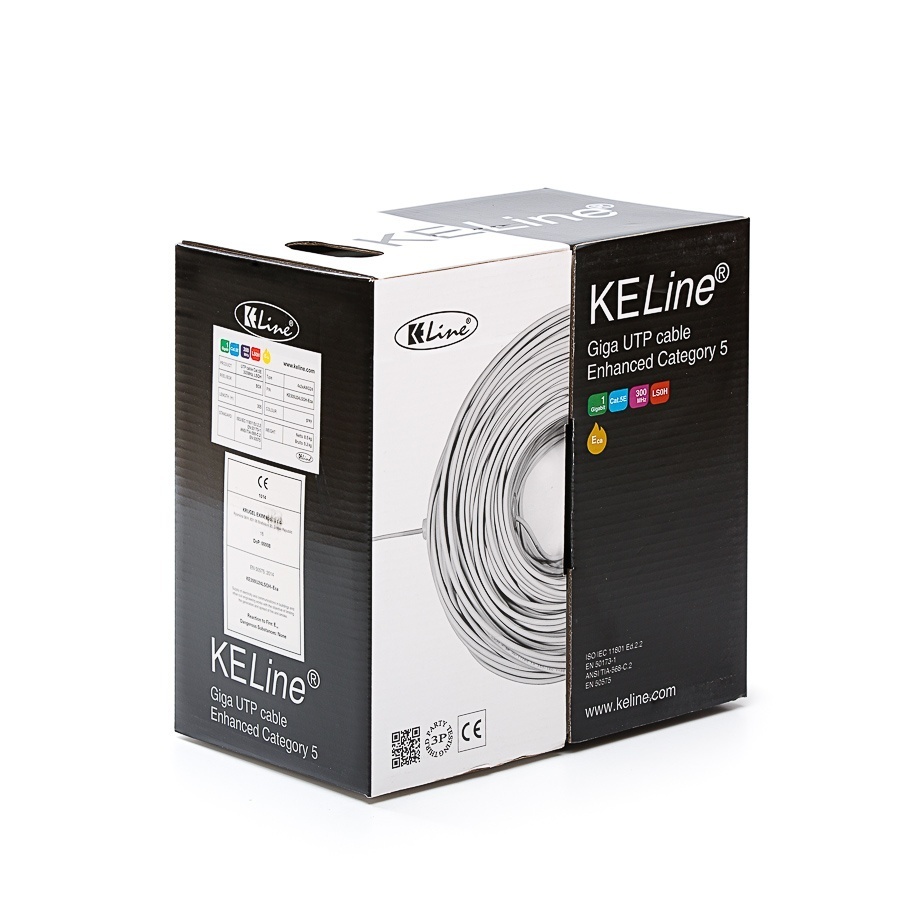

UTP (U/UTP) cable, 4x2xAWG24, Category 5E, 300 MHz, LSOH, Euroclass Dca - s1, d1, a1, 305 m in a box

P/N: KE300U24LSOH-Dca-RLX

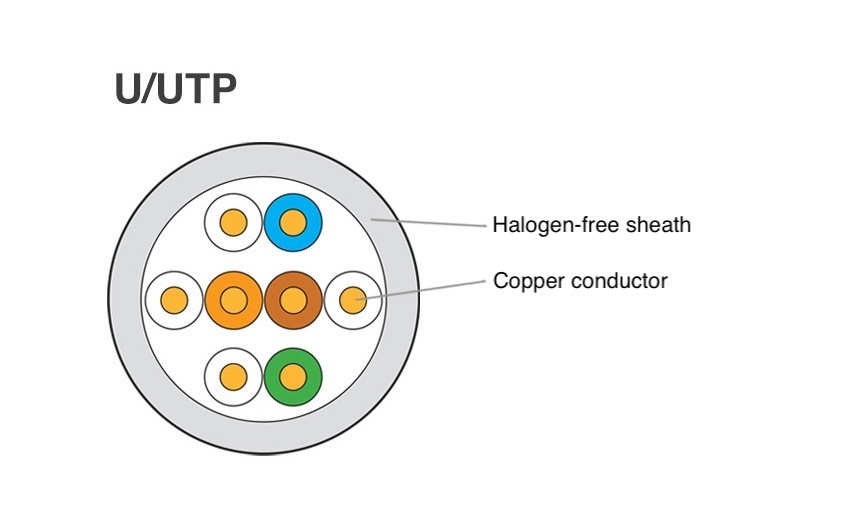

unshielded cable with halogen-free sheath
enables transmission of all high-speed protocols including 1000BASE-T
tested in a bandwidth up to 300 MHz
enables RJ45 connectors to be mounted directly to the cable

DATASHEET CERTIFICATE DECLARATION OF PERFORMANCE EKSPLOATACINIŲ SAVYBIŲ DEKLARACIJA Декларация за Експлоатационни Показатели DECLARACIÓN DE PRESTACIONES

Min. bending radius - installation	43 mm
Min. bending radius - operation	22 mm
Max. tensile load	110 N (11 kg)
Temperature range - installation	0°C to +50°C
Temperature range - operation	-20 °C to +60°C
Outer cable diameter	5,3 mm
Copper conductor diameter	AWG 24
NVP	cca 69%
Reaction to fire	D_ca - s1, d1, a1
Fire safety	flame retardant, low smoke, zero halogen, non-corrosive

This product is certified on a component level by 3P international independent laboratories according to ISO/IEC 11801-1:2017, EN 50173-1:2018, ANSI/TIA 568.2-D:2018, IEC 61156-5:2020 (Ed. 3.0), EN 50288-3-1:2013, IEC 60332-1-2.

Mass production of this product is under permanent supervision of third party international laboratories performing 3P SURVEILLANCE maintenance testing and quality assurance sites.

The determination of Reaction to Fire Class Performance of this cable has been performed by Product Certification Body notified by European Commision, which also carries out the assessment and verification of constant performance (AVCP) in the System 3.
