Technical specification
| Protection: | IP55 |
| Maximum load: | 100 kg |
| Width: | 600 mm |
| Color: | gray (RAL 7035) |
| Surface: | structured |

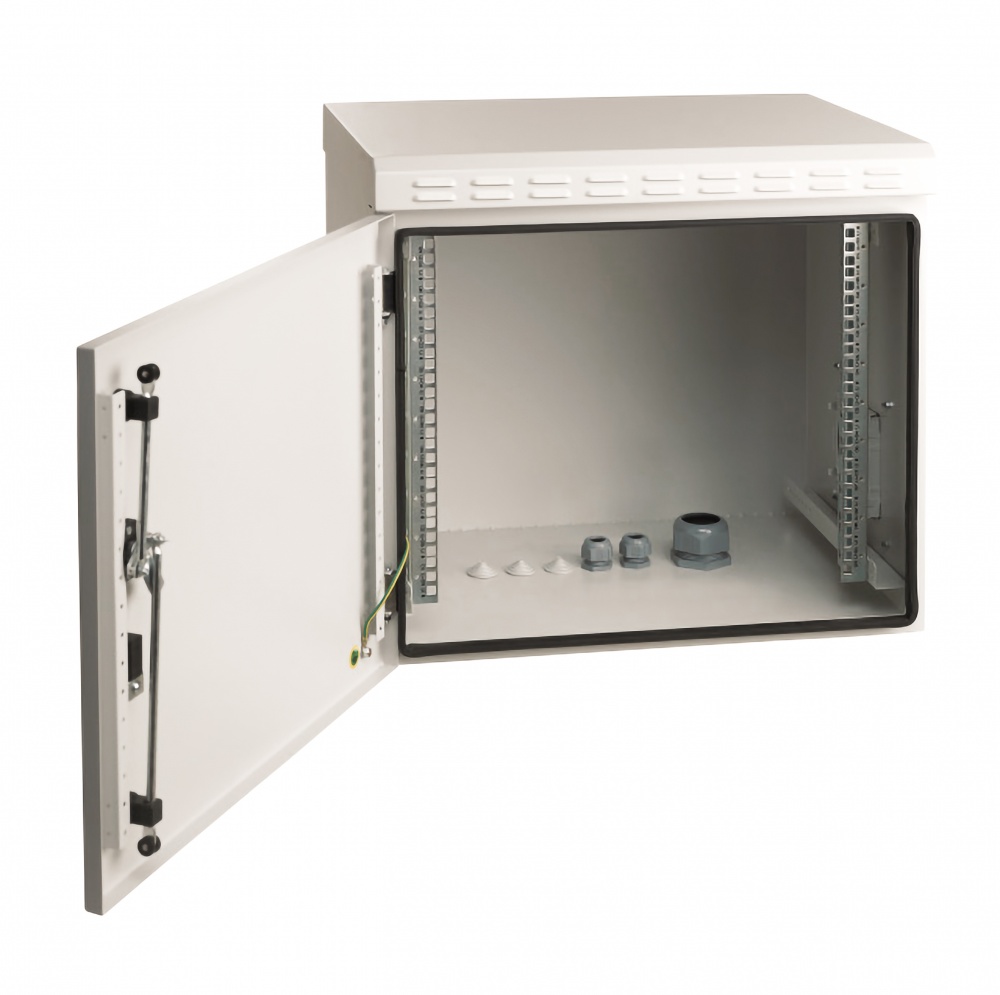

19" cabinet for outdoor / industrial areas with IP55 protection
P/N: RIO-XX-CYY
Height
Depth
Width
pc
- designed for protected outdoor and industrial areas
- dust and water resistant

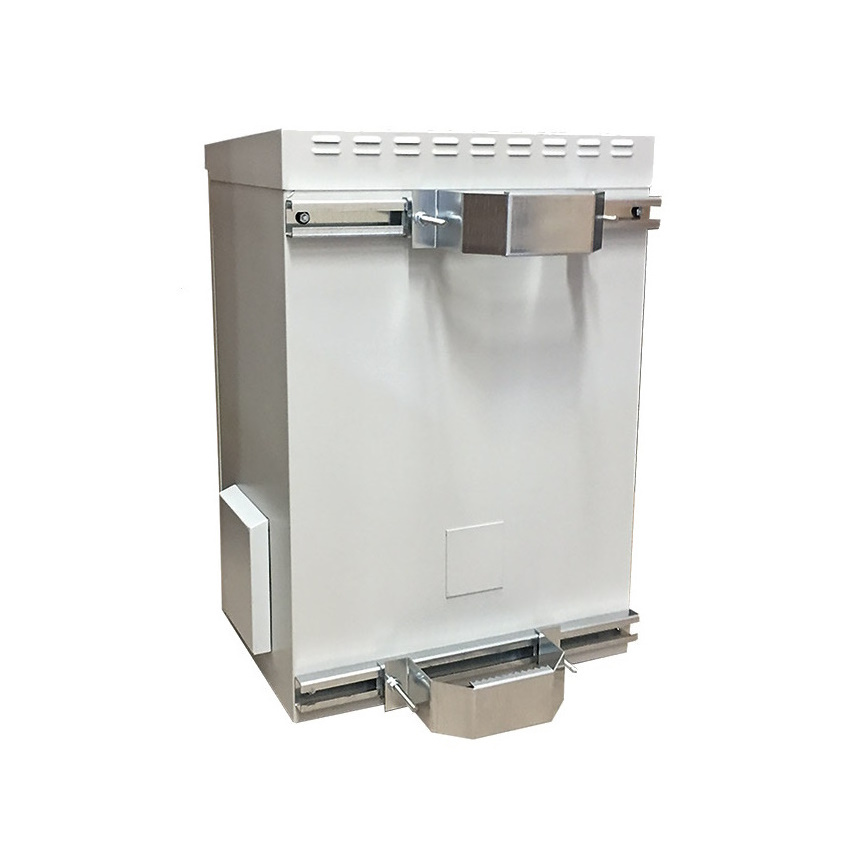

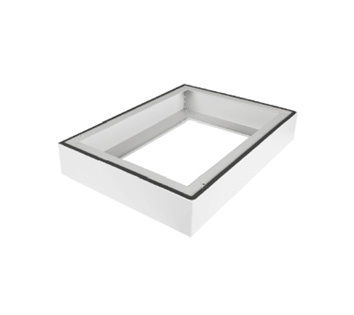

- can be used as wall mounted or free-standing cabinet (in case of ordering with the base)
- welded steel construction
- reinforced steel front door with 3-point bar-locking and half-cylinder lock

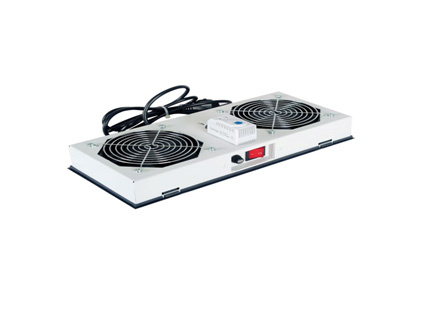

- double roof, inner roof prepared for mounting of double fan unit with thermostat (fan unit has to be ordered separately)
- vertical rails are continuously adjustable (back rails can be ordered as well)
- bottom cable entrance through PG clamps 1xPG48, 2xPG21+ 3 blind holes of Ø 20 mm
- all removable parts are connected with earthing cables
