8 fibers fire-resistant universal central loose tube cables, 180 min. at 750°C, Euroclass Dca - s1, d1, a1, OM2 50/125 μm

P/N: CLTFR08OM2
km
  • fire-resistant (180 min. at 750°C) according to the standards IEC 60331-11:01, IEC 60331-25:01

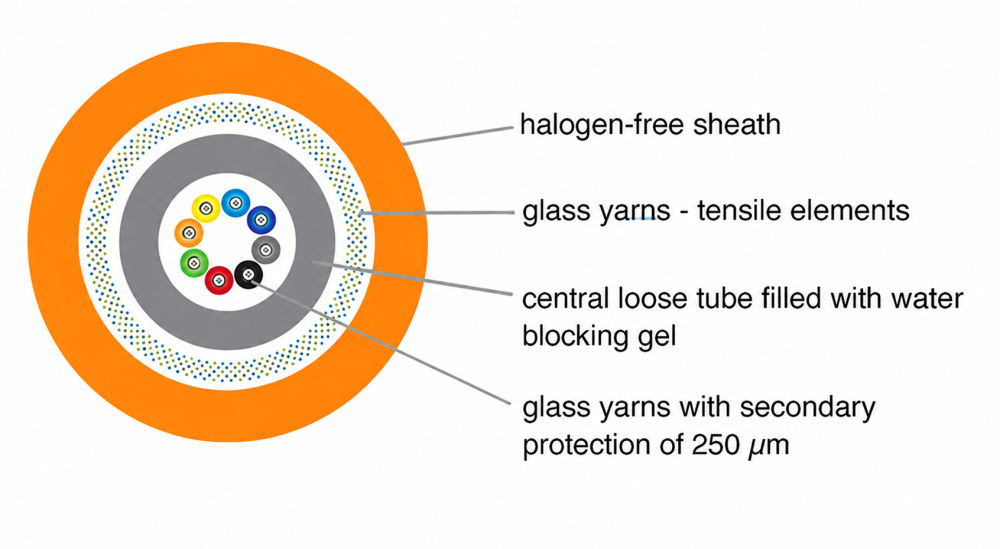

  • fully dielectric construction, halogen-free and fire retardant sheath
  • tensile elements made of water blocking glass yarns
  • primary protection of 250 μm
  • central loose tube filled with water blocking gel
  • suitable for outdoor as well as for indoor environment
  • resistant to moisture, water and UV radiation
  • partial rodent protection (glass rodent protection - GRP)
  • ideal for horizontal campus duct installations using blowing and pulling technique





Technical specification

Standard temperature range (installation) -5°C to +50°C
Standard temperature range (operation) -20°C to +70°C
Min. bending radius (installation) 140 mm
Min. bending radius (operation) 70 mm
Max. tensile load (installation) 2000 N (200 kg)
Outer cable diameter 7 mm
Weight 58 kg / km
Number of tubes x number of fibers 1 x 8
Fire safety flame retardant, low smoke, zero halogen, non-corrosive

Certificates and Warranties




The determination of Reaction to Fire Class Performance of this cable has been performed by Product Certification Body notified by European Commision, which also carries out the assessment and verification of constant performance (AVCP) in the System 3.





25-Year System Warranty
